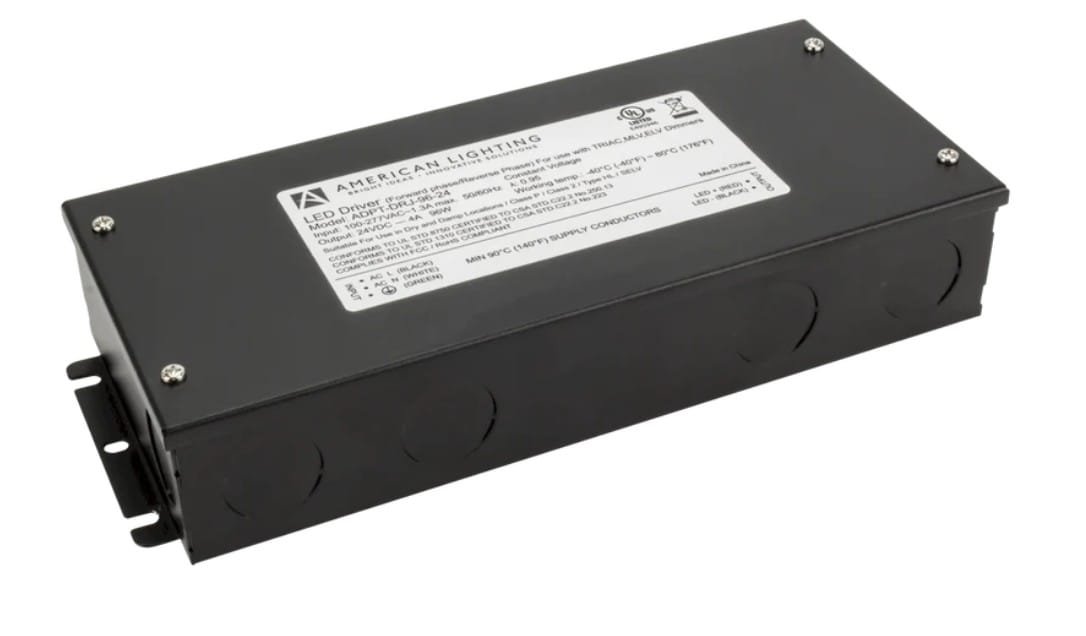

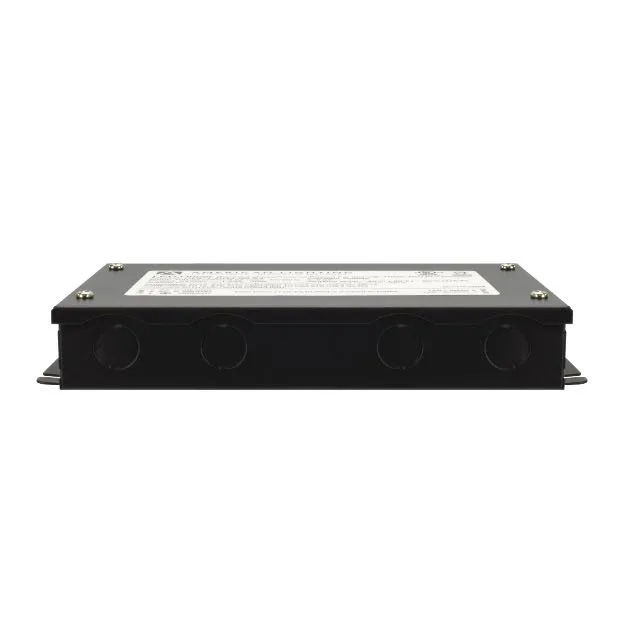

The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.
- 24V DC Constant voltage 96W hardwire LED driver
- Dimmable with ELV, MLV, & Incandescent TRIAC dimmers

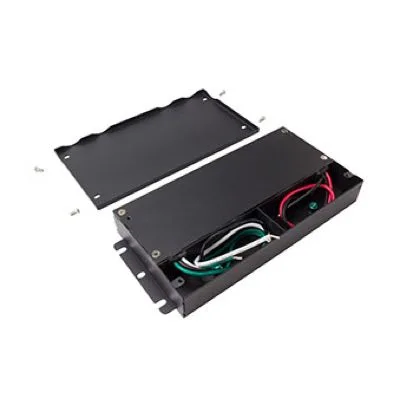

- Features integrated wiring compartments for line and low voltage
- Forward phase & reverse phase compatible
- Short circuit, over-load, and over temperature protections
- Slim compact housing design – Less than 1-5/8″ in height
- Class II / cULus Listed – Wet location rated
Specifications
Details| Details |
|---|
| Brand: | American Lighting | Manufacturer Part Number: | ADPT-DRJ-96-24 |
| UPC: | 714176015811 | Wattage: | 96 Watts |
| Wattage Capacity: | 96 Watts | Input Voltage: | 120-277V |
| Output Voltage: | 24V DC | Dimmable: | 120V |
| Min Operating Temp: | -40 Degrees F | Special Features: | Wet Location Rated |
Dimensions| Dimensions |
|---|
| Length: | 8.66″ | Width: | 3.62″ |
| Height: | 1.61″ | |
